Detect leaks. Stops Leaks. Automatically
The importance of safety and precaution in using LPG gas cylinders or piped gas connections cannot be stressed upon enough. While the gas companies try their best to make the gas set-up as safe as possible, most of the times its the human error in handling gas in the kitchen that lead to accidents.
Presenting the Exattec GasHound® line of products, which, like a true hound:
- Senses danger,
- Alerts you of the danger, and
- Even takes action to subvert the danger automatically.
The GasHound® is a remarkable little piece of innovation which detects the gas leaks and rings out a loud alarm before gas concentrations reach dangerous levels. Additionally, the GasHound® leak detector shuts off the gas supply automatically to prevent further leakage, even if you’re not at home.
NOTE: The GasHound® products are covered for Product Liability Insurance Coverage for a sum up to INR 1 Crore.
Sense Danger, alerts and takes action
GasHound® offers a high level of functionality, reliability and flexibility with sophisticated design
Product Liability Insurance Coverage
The GasHound® products are covered for Product Liability Insurance Coverage for a sum up to INR 1 Crore.
Easy Installation & Extended Warranty
Exattec™ offers Pan India service coverage & easy installation of the product with extended warranty
Battery back up for Power Outage
Battery Backup Varient provided 24/ 7/ 365 Days Safety, don't worry about irregular power outages
GasHound® modules and Features
Our GasHound® products are insured for Product Liability Cover for INR 1 Crore.

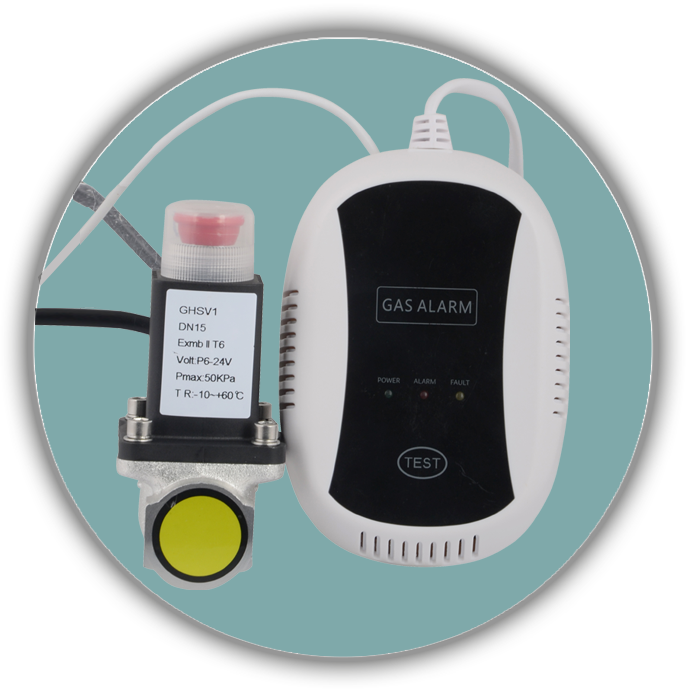

GasHound® comprises of two modules:
- The detector
- The shut-off valve
GasHound® offers a high level of functionality, reliability and flexibility due to the use of highly accurate electronic components and sophisticated modular design. It can be easily installed in the kitchen or near any gas pipeline. Whenever a combustible/explosive gas or carbon monoxide leaks, an audio visual alarm is activated and the solenoid valve is actuated to shut off the supply, reducing risks of further leakage. The GasHound® monitors LPG/LNG, methane or carbon monoxide.
The gas emergency shut off solenoid valve is specially designed as gas pipe breaker for emergency use. It is connected with the gas leaking detector unit so that on-site or remote shut down of gas supply (manually or automatically) is possible, hence ensuring the safety with gas usage. The valve features auto-close when strong vibration is detected. After closing, manual operation is required to turn on the valve. This feature meets safety regulations in the event of an accident.
The product adheres to the highest level of quality requirements. The detector is CE certified and the valve adheres to Exmb II T4 explosion proof certifications.
FEATURES
- High performance digital processor for high reliability
- High performance gas sensor ensures high sensitivity
- Swift warm up & fast response
- With temperature compensation feature in-built, results are more accurate
- Buzzer frequency changes as per different gas densities
- The system has a built in self check. Alerts user when the system life has ended
VARIENTS
GasHound® comes in 2 Varients, GH1 and GH2*
GH 1 Without Power Backup
GH2* Comes with 5 Hours of Power backup
*Suitable for irregular power outages, 9V battery backup in case of power outage
#The working life of GasHound® is about 5 years from the date of manufacture

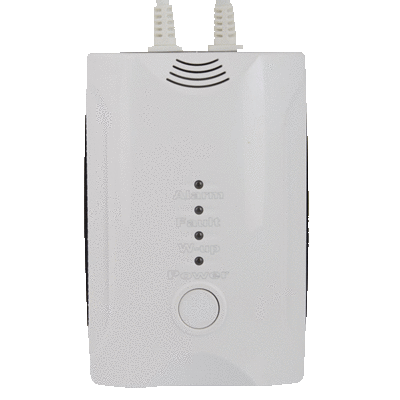

TECHNICAL DETAILS – DETECTOR
- Gases Detected: natural/methane gas and LPG (propane gas), coal gas/carbon monoxide
- Sensor type: Catalytic combustion type (for combustible gas); Electrochemical type/ Semiconductor type for carbon monoxide
- Detection method: Diffusion
- Measuring range: (0~10/50/100) % LEL, (0~500/1000) µmol/mol
- Alarm Setting: ≥7% LEL for natural gas/ LPG; 100 µmol/mol for CO
- Alarm method: Audio and visual alarm
- Audible alarm level: ≥80dB
- Output control: shut-off valve output
- Response time: ≤30s.
- Operating Voltage: AC 220V, 50Hz
- Operating Temperature: -10℃ to 55℃
- Humidity: ≤95%RH (non condensing).
- Atmospheric pressure: 86kPa ~ 106kPa (indoor).
- Working place: ordinary industry and civil building (indoor).
- Size: l*b*h, 120mm*82mm*45mm.
- Weight: 230 gms
TECHNICAL DETAILS – SHUT-OFF VALVE
- Suitable gas types: LPG, PNG
- Closing modes: Current impulse or manual
- Body: Wrought aluminum alloy
- Driving Voltage: DC 9-12V
- Sealing material: NBR rubber
- Close time: <1sec
- Operation temperature: -10~50℃
- Explosion proof mark: Exmb II T4
- Pressure max: 10kpa
- Connection: G1/2″
- Turn on: Manual
About Us (Exattec™)
Our endeavor is to provide products and solutions that enhance Security, Productivity and Convenience
We are a young technology company and what drives each one of us to work everyday is the zeal to utilize iOT technology to make the everyday life more Productive, more Secure and more Convenient.
This principle is the cornerstone of all our endeavors. Our principal company, Inditron India Electronics LLP has been at the forefront of providing solutions to the Defense fraternity and allied industries since 2002 and we are utilizing the technical know how of our parent to come up with cutting-edge, user friendly consumer facing products and solutions. We are HQ’d at Bengaluru.
Reach us for GasHound® dealership enquiries .
